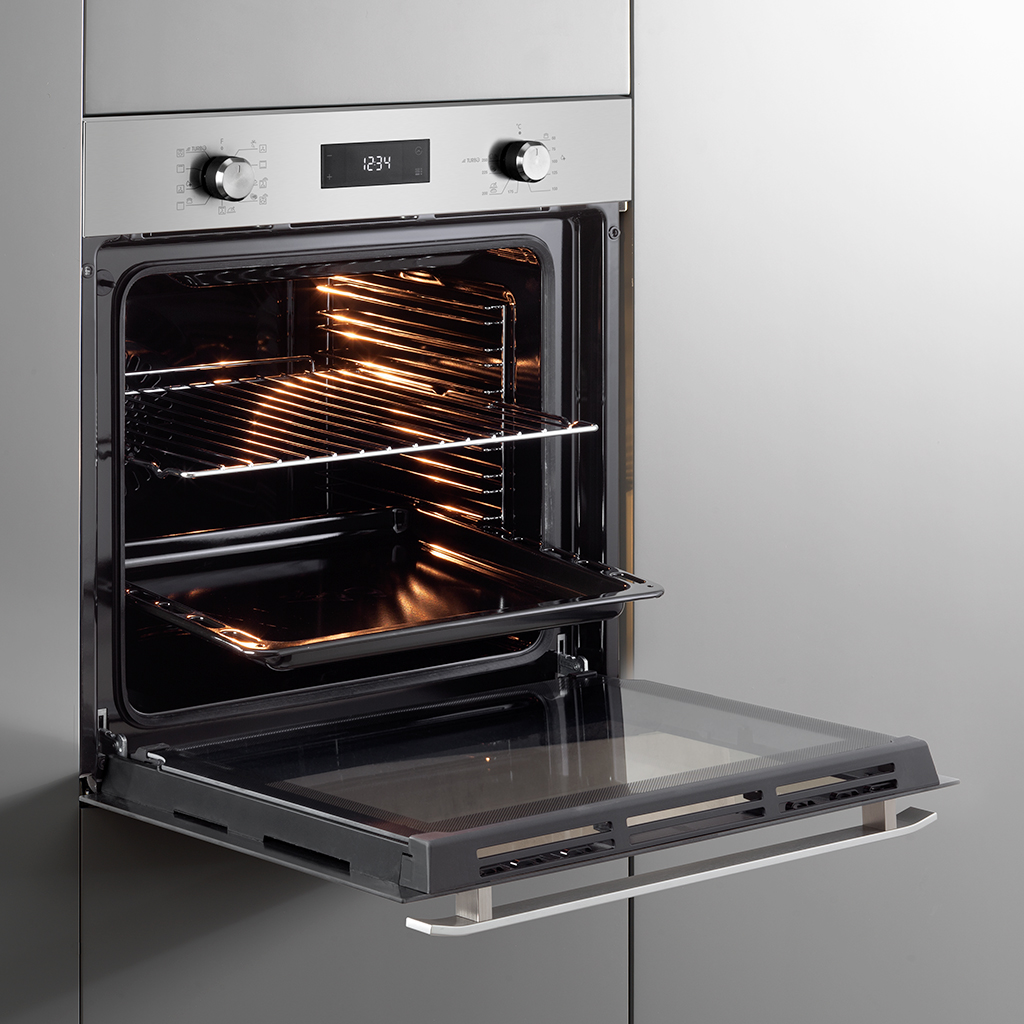

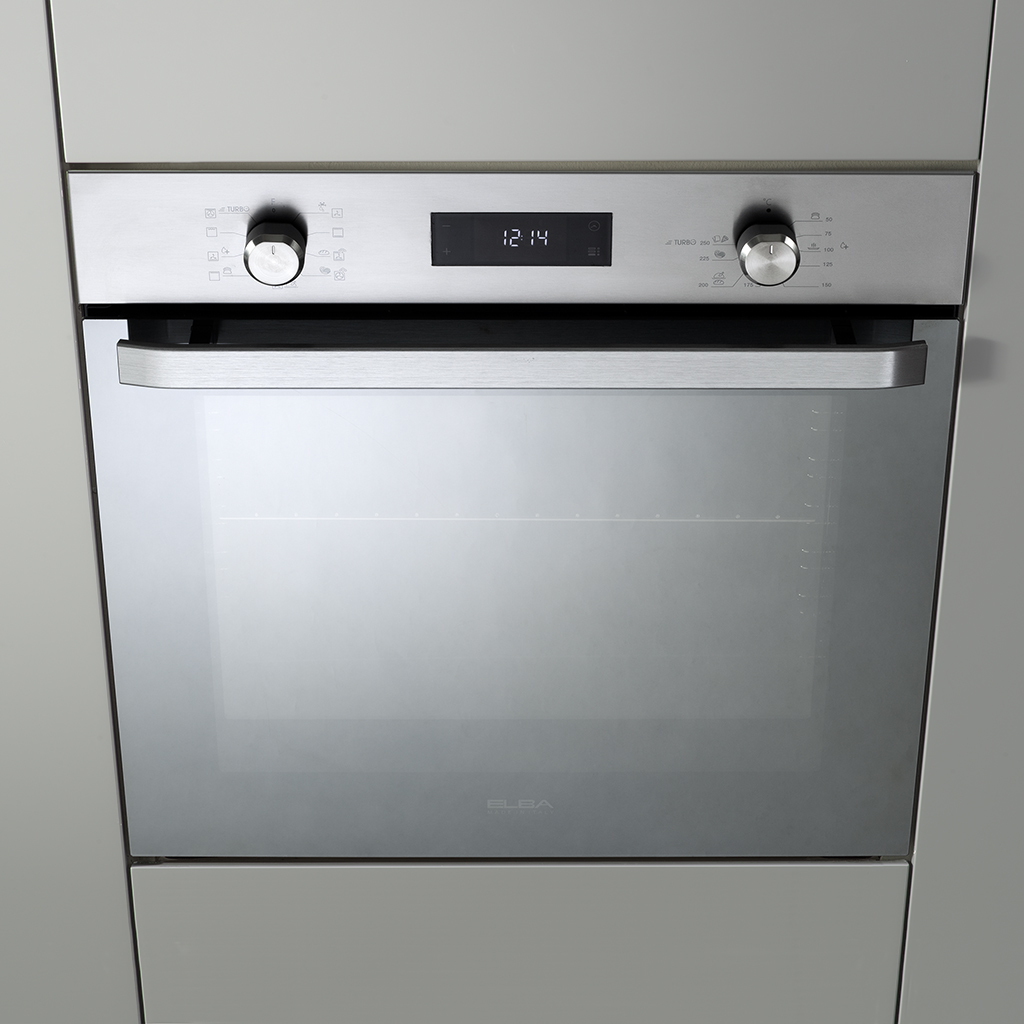

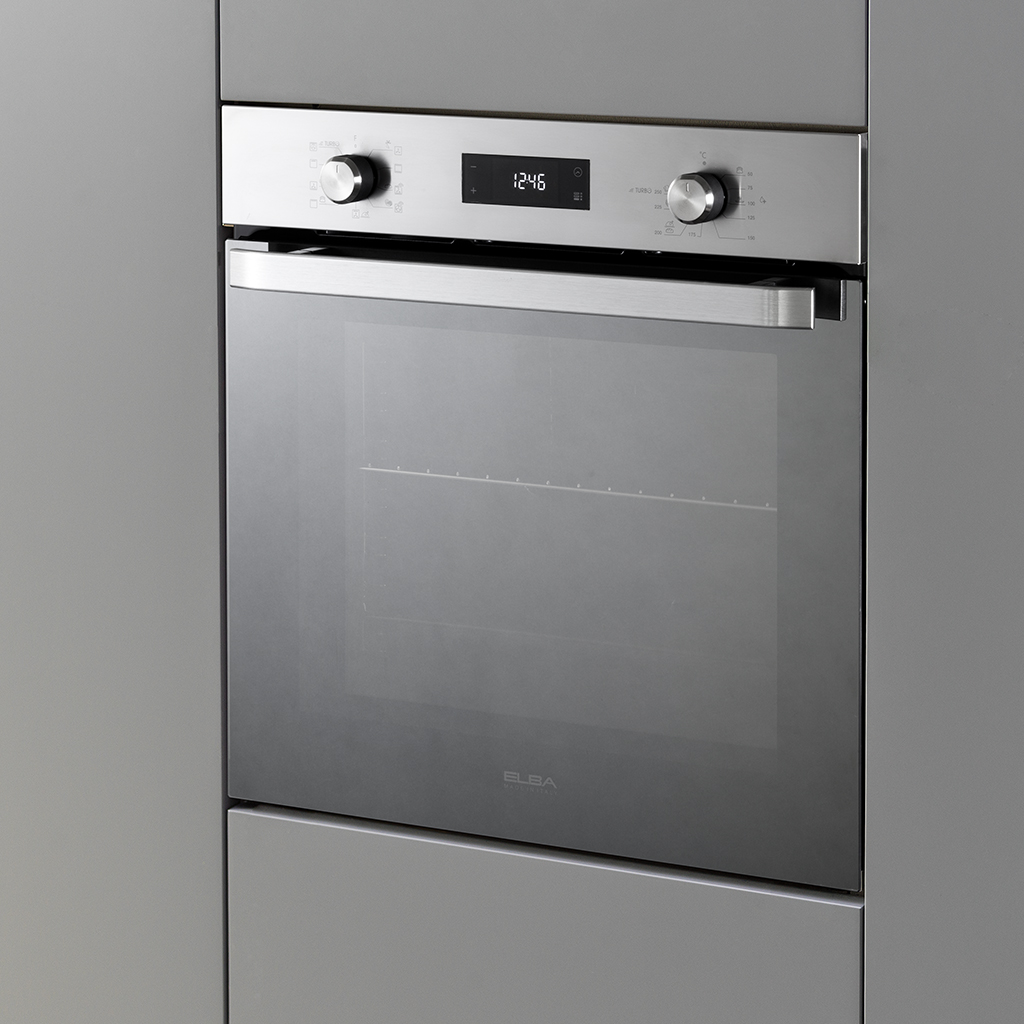

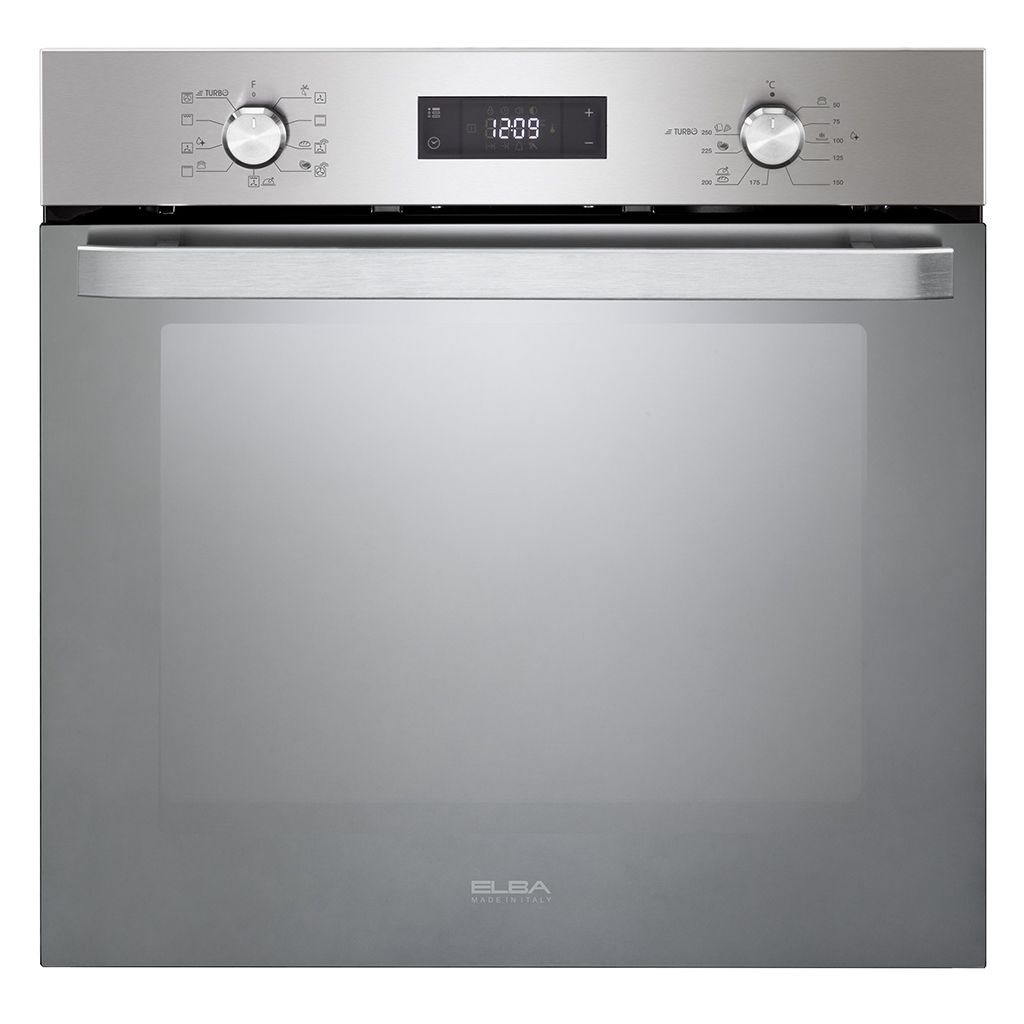

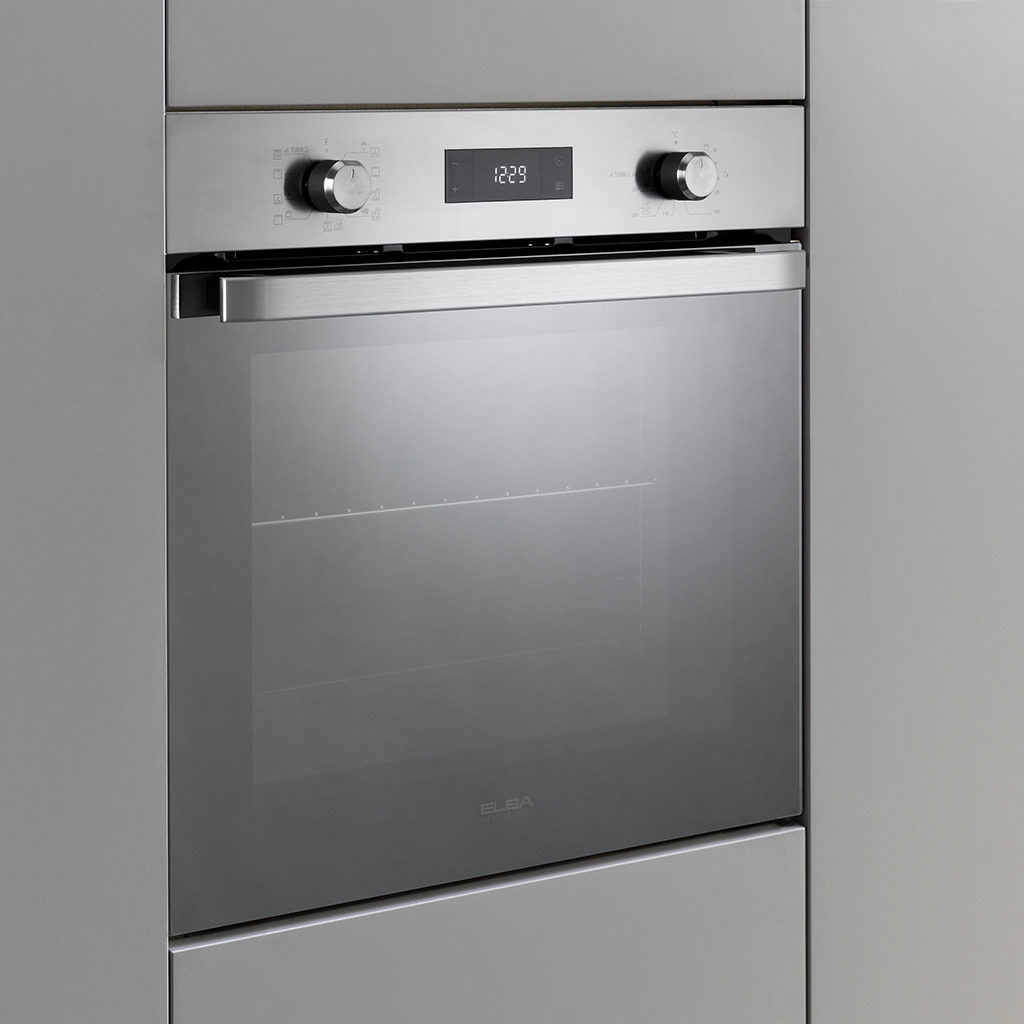

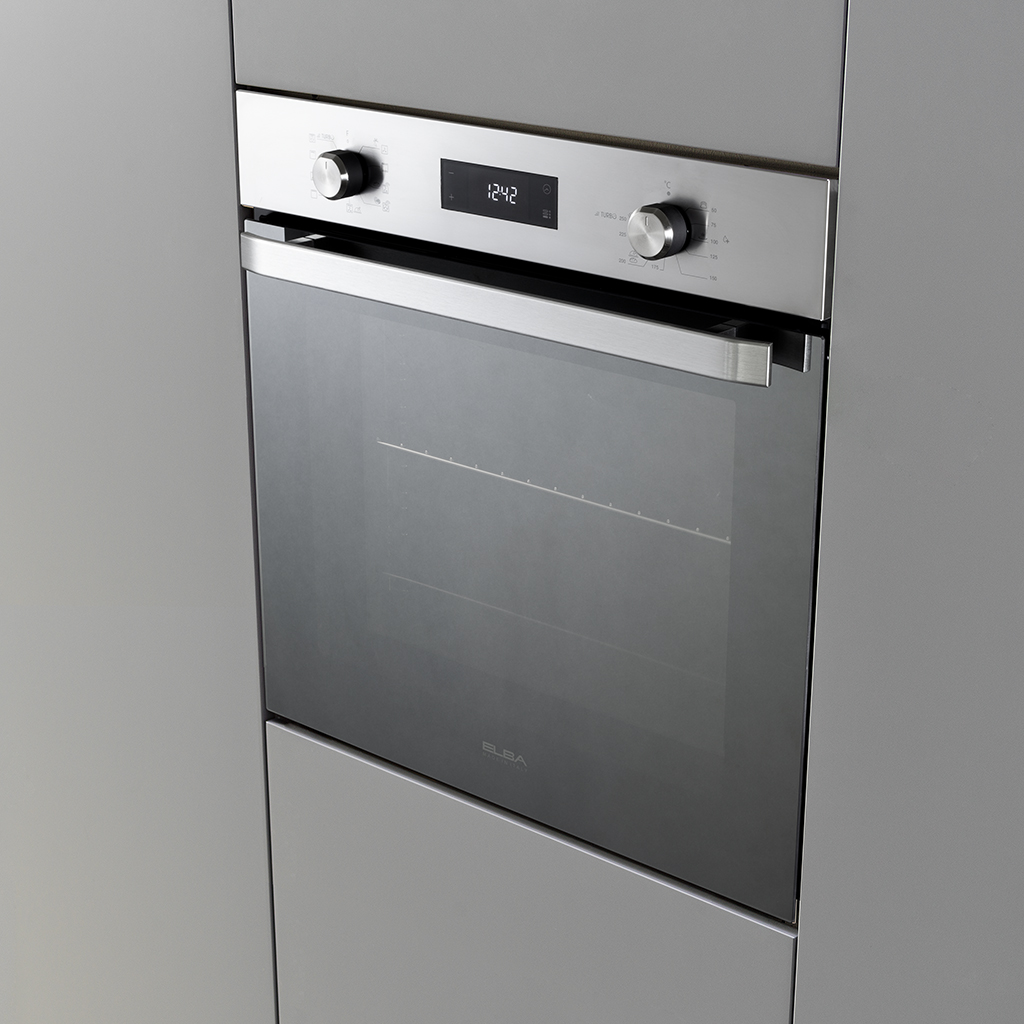

Elio Electric multifunction oven

EL 9 XLX
Features

Electric multifunction oven 9 functions ​
74 net liters cavity 7 levels side racks ​
Easy steam function ​
Idroclean function ​
Booster fast preheating​
True fan cooking ​
Start/end cooking touch control ​electronic programmer ​
Brushed metal finishing knobs and handle ​
Stainless steel front panel ​
Double glass door with removable ​inner glasses ​
Open door light ​
1 light​
Cooling fan

Accessories

2 flat shelves
1 tray

Features

Easy Steam

The special Easy Steam function allows the water to evaporate inside the oven cavity, improving and speeding up the cooking process. The nutritional properties of foods thus remain intact, preserving the flavors, appearance and texture of the dishes. In this way, Easy Steam function helps the food stay cooked better than the same cooking without adding moisture.

True fan cooking

With the heating element located around the fan, you can cook many kinds of food on different levels without mixing flavors and smells. This function is great for foods that need to be well cooked but at the same time needing to stay tender and moist.

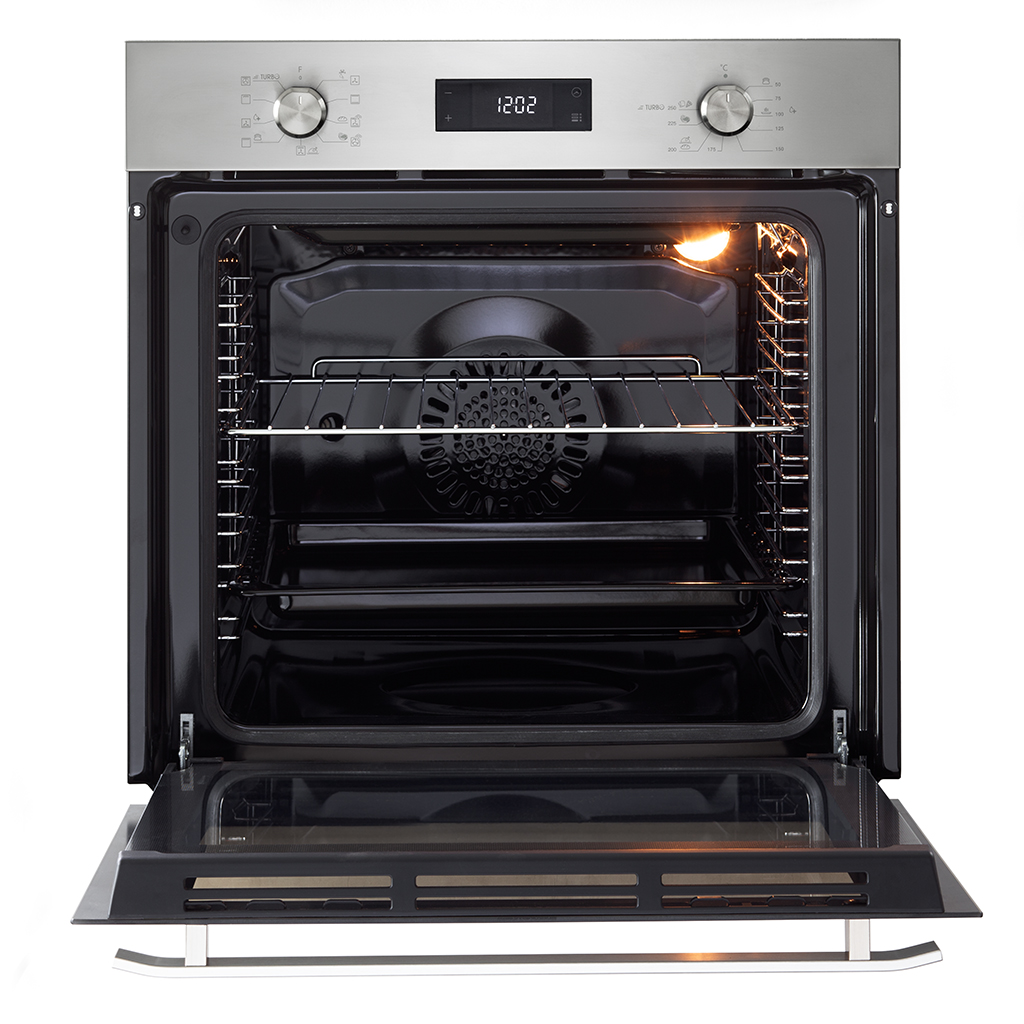

Maxi space cavity

74 usable litres (86 gross liters) with 7 levels with easier-to-remove side racks for your multilevel preparations.



Idroclean

Without using any type of detergent, this function helps remove the dirt inside the oven thanks to the moisture generated by the water warming at 80-90°C.

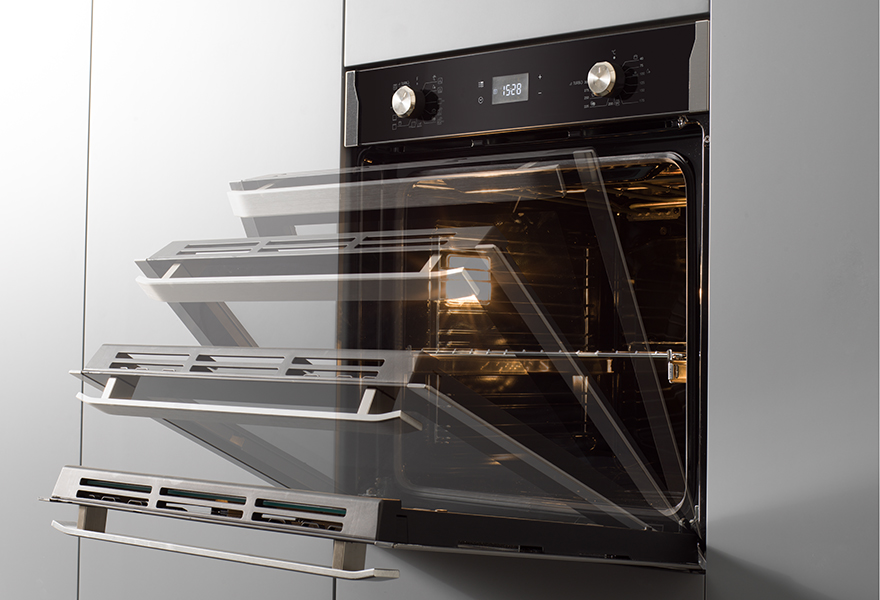

Soft closing door

In Elba ovens, the soft closing door is fitted with special hinges that are specifically developed to soften noise and automatically slow down the movement when closing.

Easy to remove inner glasses

To assist with cleaning, Elba ovens doors are fitted with easy-to-remove inner glasses.
Just remove the glass retainer by pushing the side clips and lift up the inner glasses.

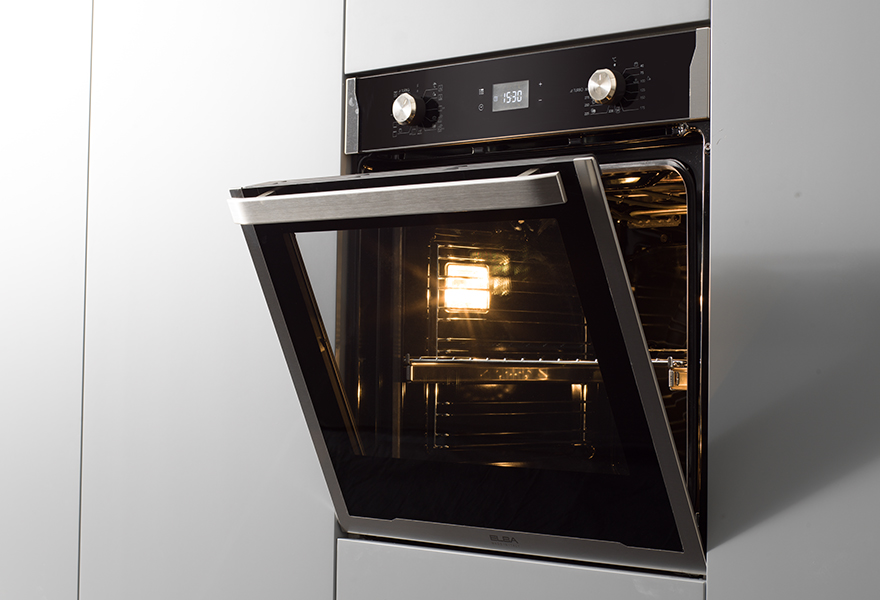

Automatic light switch on

The oven light will turn on automatically when the oven door is opened.

Aesthetics

  • Line

    Elio

  • Colour

    stainless steel

  • Installation mode

    buit-in

Overall dimensions

  • Platform Width (cm)

    60

  • Platform height (cm)

    60

  • Width (mm)

    595

  • Height (mm)

    595

  • Built In Width (mm)

    560

  • Built In Depth

    550

  • Height Base Installation

    600

  • Height Column Installation

    590

Control Zone

  • Control Type

    knobs

  • Knobs finishing

    brushed metal

  • Controls position

    front

  • Programmer

    start/end cooking electronic

  • Display

  • Programmer controls

    touch control

Door

  • Handle

    brushed metal

  • Design

    stainless steel frame

  • Glass door

    mirrored

  • Glass number

    2

  • Removable inner glasses

    1

Oven

  • Fuel

    electric

  • Cooling fan

  • Safety devices

Cavity

  • Type

    electric multifunction

  • Net Volume

    74

  • Shelves Support

    side racks

  • Cavity Type

    side racks

  • Thermostat

  • Circular element

    1

  • Grill element fuel

    electric

  • Number of functions

    9

  • Functions

    • oven light
    • defrosting
    • top-heat only
    • fan assisted grilling
    • top-heat fan assisted
    • base heat only
    • convection cooking
    • true fan cooking
    • electric grilling
    • fan assisted cooking
    • plate warmer

  • Special functions

    • leavening 40°C
    • easy Steam
    • idroclean
    • turbo
    • true fan cooking

  • Fan

    1

  • Oven light (num)

    1

  • Cleaning system

    idroclean

Other

  • Made in

    Italy

Electric connection

  • Total electric absorption (W)

    2900

  • Cable

Accessories

  • Accessory 1

    tray

  • Accessory 2

    2 flat shelfs

Model:

EL 9 XLX

Overall dimensions (W x H) mm:

595x595

Click on a link to download your required PDF

User installation instructions
User-installation-instructions-built-in-electric-ovens.pdf
Installation diagram
Installation-diagram-74l-ovens
User manual
Manual EL 9 XLX
