Gas on glass ceramic hob with electronic controls

Back
ELIO 95 G-MATIK

90 cm vitroceramic glass, 5 gas burners with double ring wok burner, cast iron pan supports and wok stand, safety devices and electronic ignition, easy to reach front control gas knobs.

Features

Vitroceramic glass

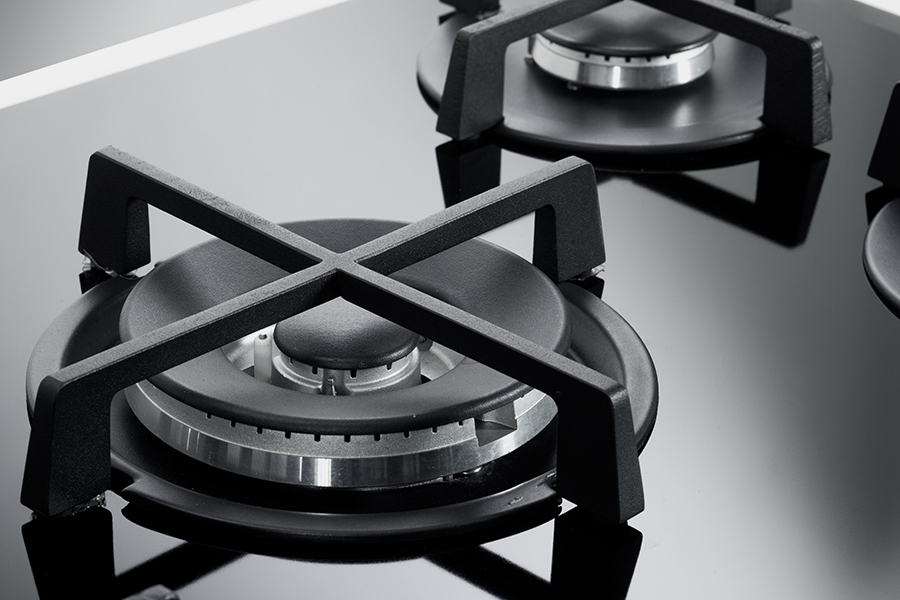

5 gas burners with double ring wok burner
Cast iron pan supports and wok stand
Safety devices and electronic ignition
Easy to reach front control gas knobs
Easy to use electronic touch control interface featuring
Automatic end of cooking timer for each cooking zone
Remaining cooking time display for each single burner
Additional minute minder on each cooking zone

Child safety lock key
Indicator lights when the hob is active
Residual heat and alarm indicator leds
Audible alarm to indicate either system activation or flame failure
Self-diagnostics feature for auto re-ignition and auto safety switch off
The gas cooktop can safely operate even in case of power cut

Share

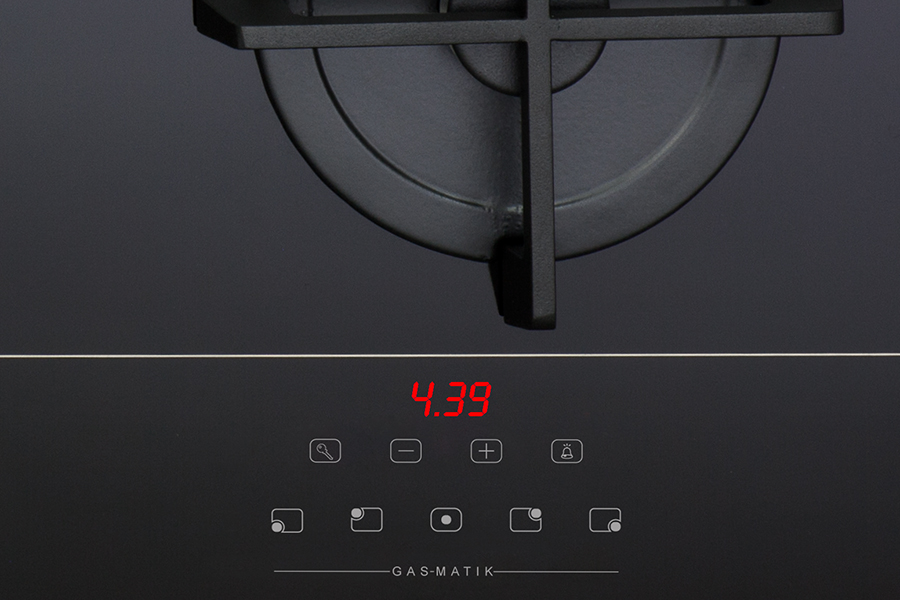

Electronic sensor touch controls

This Electronic Gas Hob has a range of additional features: each gas burner can be programmed to turn off after a set period of time or set as a minute minder; furthermore, this hob has child-lock function, and if a burner is in use continuously for 4 hours the system will automatically shut down.

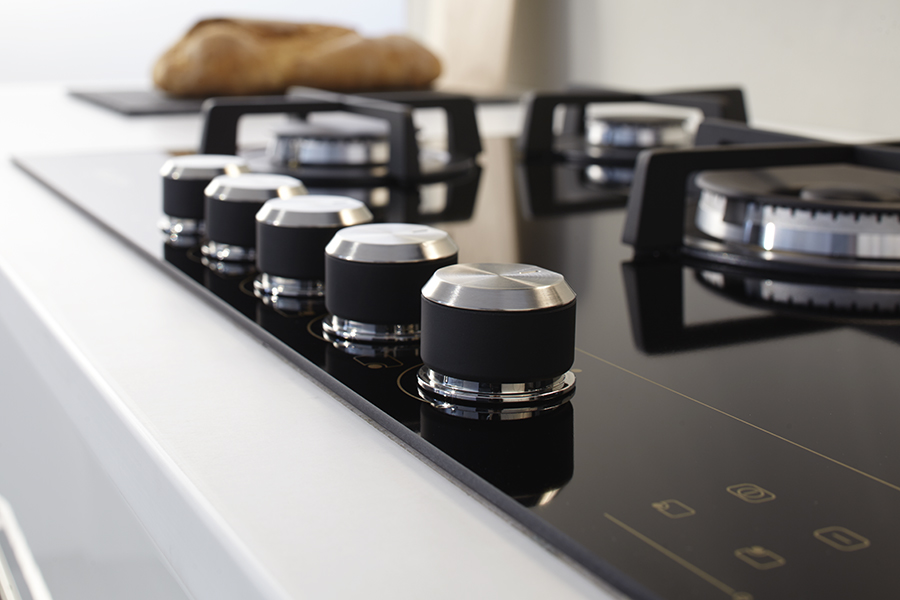

Ergonomic sophisticated design

The Elio Gas-matik ceramic hob design is achieved with sleek and smooth edges. The hob is made from a high-quality gas-certified ceramic glass, making it easy to clean, safe and an ideal cooking platform. The precious soft-touch knobs associated with the chrome bezel and metal cap enrich further the product.

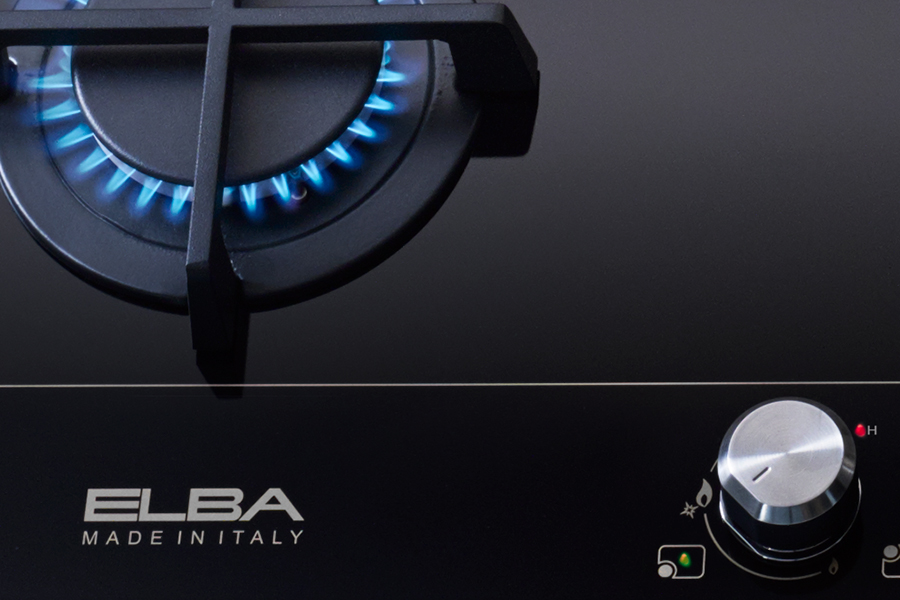

Enhanced extra features

The Gas-Matik hob has several important and unique features: automatic re-ignition if the flame extinguishes, linked to the self-diagnostic system; post-use, an indicator on the control panel will show that there is residual heat led for each burner and an audible alarm to indicate either system activation or flame failure.

Self-diagnostics feature

Self-diagnostics feature for auto re-ignition and auto safety switch off

Aesthetics

  • Line

    Elio

  • Colour

    black

  • Installation mode

    built-in

Overall dimensions

  • Platform Width (cm)

    90

  • Width (mm)

    900

  • Depth (mm)

    510

  • Cut Out Width

    860

  • Cut Out Depth

    480

Cooktop

  • Material

    ceramic glass

  • Fuel

    mixed

  • Cooking zone type

    gas burners

  • Cooking zone number

    5

  • Double crown burner

    1

  • Ignition

    electronic touch control

  • Safety devices

  • Pan supports material

    cast iron

  • Special functions

    key lock

Control Zone

  • Control Type

    knobs, touch control

  • Knobs finishing

    brushed metal

  • Controls position

    front

  • Programmer

    start/end of cooking electronic

  • Programmer controls

    knobs, touch control,

Other

  • EAN

    8024651408352

  • SAP code

    P91CAS001H

  • Made in

    Italy

Electric connection

  • Total electric absorption (W)

    3

  • cable

Gas connection

  • Total gas absorption (W)

    11300

  • Regulation

    G20 - natural gas

  • Replacement injectors

    G30/G31 - lpg

Accessories

  • Accessory 1

    wok support

Model:

ELIO 95 G-MATIK

Overall dimensions (WxL) mm:

900x510

Click on a link to download your required PDF

Installation Diagram
90 cm GAS HOB INSTALLATION DIAGRAM
