Vintage three cavity dual fuel freestanding cooker

Back
VB 9653 M

90×60 cm freestanding cooker, 5 gas burners including 1 double ring wok burner, cast iron pan supports, electric multifunction main oven with 8 functions.

Cooktop

h 120 mm stainless steel splashback
h 30 mm rounded stainless steel cooktop
Cast iron pan supports and wok support
5 gas burners of which 1 double ring wok burner
Brushed metal finishing knobs with outer bezel

Ovens

Stainless steel door frame
Metal handle
Cooling fan
Start/end cooking electronic programmer
Main Oven: electric static oven 2F with thermostatic grill
Bottom left oven: electric multifunction oven 8F
Right oven: electric fan oven 3F

Accessories

1 set of telescopic sliding guides, 2 trays, 2 grill pan shelves, 3 shelves, dish-warmer shelf

Share

Large cooktop with durable cast iron pan supports

Stainless steel five-burners gas top. Heavy and durable cast iron and wok supports are included.

Vintage knobs

Inspired by the original wood-burning stoves that our founder created in 1950, Elba Vintage Cookers are controlled by knobs with stainless steel finishing.

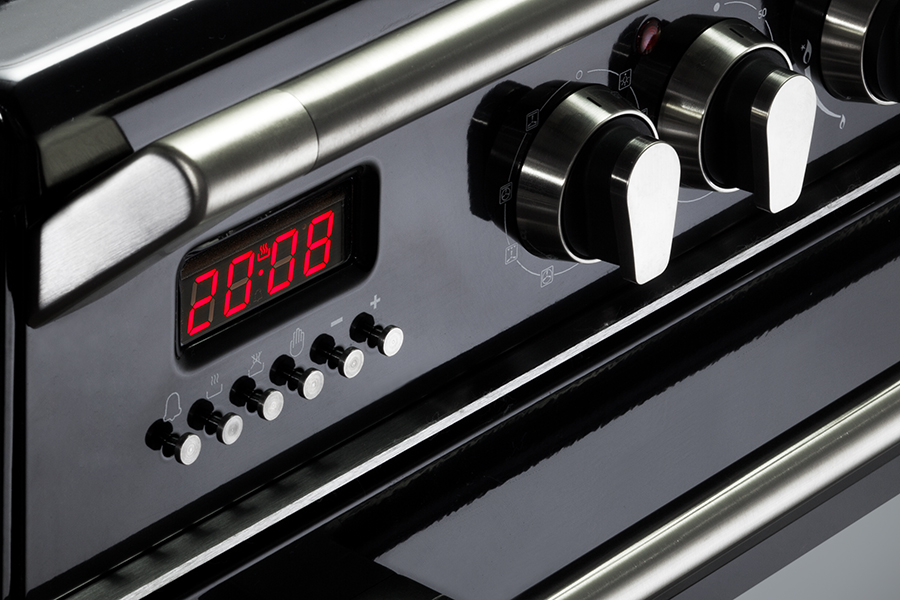

Refined details

The vintage style is also in the design details, such as the comfortable electronic programmer. In addition, the bright chrome handle is available on all Elba Vintage cookers, as a replica of the handrail found on the original Elba stoves, giving the kitchen a traditional trait.

Aesthetics

Overall dimensions

  • Platform Width (cm)

    90

  • Platform depth (cm)

    60

  • Width (mm)

    900

  • Depth (mm)

    600

  • Height Min (mm)

    900

  • Height Max (mm)

    -

Cooktop

  • Splashback

  • Lid

    1

  • Hob Type

    rounded

  • Material

    stainless steel

  • Fuel

    gas

  • Cooking zone type

    gas burners

  • Cooking zone number

    5

  • Double crown burner

    1

  • Ignition

    automatic

  • Safety devices

  • Pan supports material

    cast iron

Control Zone

  • Control Type

    knobs

  • Knobs finishing

    brushed metal

  • Controls position

    front

  • Programmer

    start/end of cooking electronic programmer

  • Display

  • Programmer controls

    buttons

Door

  • Handle

    brushed metal

  • Design

    painted frame

  • Glass door

    transparent

  • Glass number

    2

Oven

  • Fuel

    electric

  • Cooling fan

Cavity 1

  • Type

    electric static

  • Position

    top left

  • Net Volume

    37

  • Cavity Type

    side racks

  • Thermostat

  • Grill element fuel

    electric

  • Functions

    • oven light
    • electric grilling
  • Special functions

    true fan cooking

  • Fan

    1

  • Oven light (num)

    1

  • Cleaning system

    easy to clean enamel

Cavità 2

  • Type

    electric multifunction

  • Position

    bottom left

  • Net Volume

    59

  • Cavity Type

    side racks

  • Thermostat

  • Circular element (num)

  • Grill element fuel

    electric

  • Functions

    • oven light
    • conventional cooking
    • fan assisted cooking
    • electric grilling
    • true fan cooking
    • fan assisted grilling
    • keep warm (low heat)
    • defrosting
  • Special functions

    true fan cooking

  • Fan

    1

  • Oven light (num)

    1

  • Cleaning system

    easy to clean enamel

Cavità 3

  • type

    electric with fan

  • Position

    right

  • Net Volume

    73

  • Cavity Type

    side racks

  • Thermostat

  • Circular element (num)

    1

  • Functions

    • oven light
    • defrosting
    • true fan cooking
  • Special functions

    true fan cooking

  • Fan

    1

  • Oven light (num)

    1

  • Cleaning system

    easy to clean enamel

Other

  • Made in

    Italy

Electric connection

  • Total electric absorption (W)

    7340

  • Cable

  • Plug

    no

Gas connection

  • Total gas absorption (W)

    11500

  • Regulation

    G20 - natural gas

  • Replacement injectors

    G30/G31 - lpg

Accessories

  • Accessory 1

    wok support

  • Accessory 2

    2 shaped shelf

  • Accessory 3

    2 tray

  • Accessory 4

    2 grill pan shelves

  • Accessory 5

    dishwarmer shelf

Model:

VB 9653 M

Overall dimensions (WxLxH(min)xH(max)) mm:

900x600x900x-

Click on a link to download your required PDF

Installation diagram
90 cm cooker installation diagram
